We can help you leverage the Internet of Things in your factory to improve productivity and safety with remote monitoring solutions
We can help you tackle the hardware challenges of bringing your factory up to the standards of Industry 4.0.
Gathering viable diagnostic information
Simplifying connectivity and compatibility
Security concerns related to wireless communication
Connecting legacy equipment to the Internet
Space constraints and ruggedness
Programming skills or training required
Cost of customized solution
Our hardware was designed for Industry 4.0:
Compatible with leading OEM’s hardware
Communicates with all major industry-standard protocols
Easy to install
Security industry standards included
Little programming required
Quick return on investment
Standardize and reduce spare parts
The CONPROSYS IO Link Master is a low-cost solution that allows you to gather viable diagnostic information at the sensor level and send it to PLCs. In fact, this IO Link master is compatible with IEC 61131-9 compliant sensors and actuators.
This industrial grade device is compatible with the widest possible range of field bus networks: EtherCAT, PROFINET, EtherNet/IP, and Modbus TCP.
Contec’s IO Link Master now includes CC-Link IE Field Basic.
You can leverage the existing field network on site and easily connect IO-Link sensors with 8-channel independent IO-Link Ports.
You can also connect sensors from various manufacturers with one cable, and capture diagnosis information such as cable disconnections or device operating status. This device also enables error free device replacement, and quick restarts.
Finally, this gateway offers simplified power supply with a daisy chain configuration thanks to the rugged M12 connector.
Industrial Grade Device
IP67 dust-proof and water-proof features.
Wide operating temperature range from -20°C to 60°C.
Configure the desired network you are adopting on the rotary switch on the device. Then, finish setting up the device from a web browser with no additional training or programming skills required.
It supports various PLC engineering tools, like Siemens Step7, BECKHOFF TwinCAT, Omron Sysmac Studio, Mitsubishi GX Works
The CONPROSYS M2M gateway communicates data from the sensor to an application software, allowing the transmission of collected data to the cloud with simple settings. In fact, with the CONPROSYS M2M series, you can collect data from various types of facilities and can be managed centrally. Thus, this is the perfect remote monitoring solution through the Cloud.
Thanks to this durable and compact gateway, all the processes from development to operation can be performed on a web browser. The functions, such as Web monitoring and alarm processing by I/O information, enable you to create a Cloud System at low cost and in a short time.
The CONPROSYS HMI System (CHS) software is compatible with CONPROSYS hardware. It simplifies remote monitoring implementation and operation allowing you to monitor your facilities from a PC, tablet, or smartphone.
This HTML5 software gathers, analyses, and reports data from various IoT CONPROSYS gateway devices and MQTT (Message Queueing Telemetry Transport) communication devices on an HMI monitoring screen.
From a web browser, this software allows you to:
The CONPROSYS IO Nano Modules are Remote I/O Devices for Digitizing Interspersed Local or Legacy Devices.

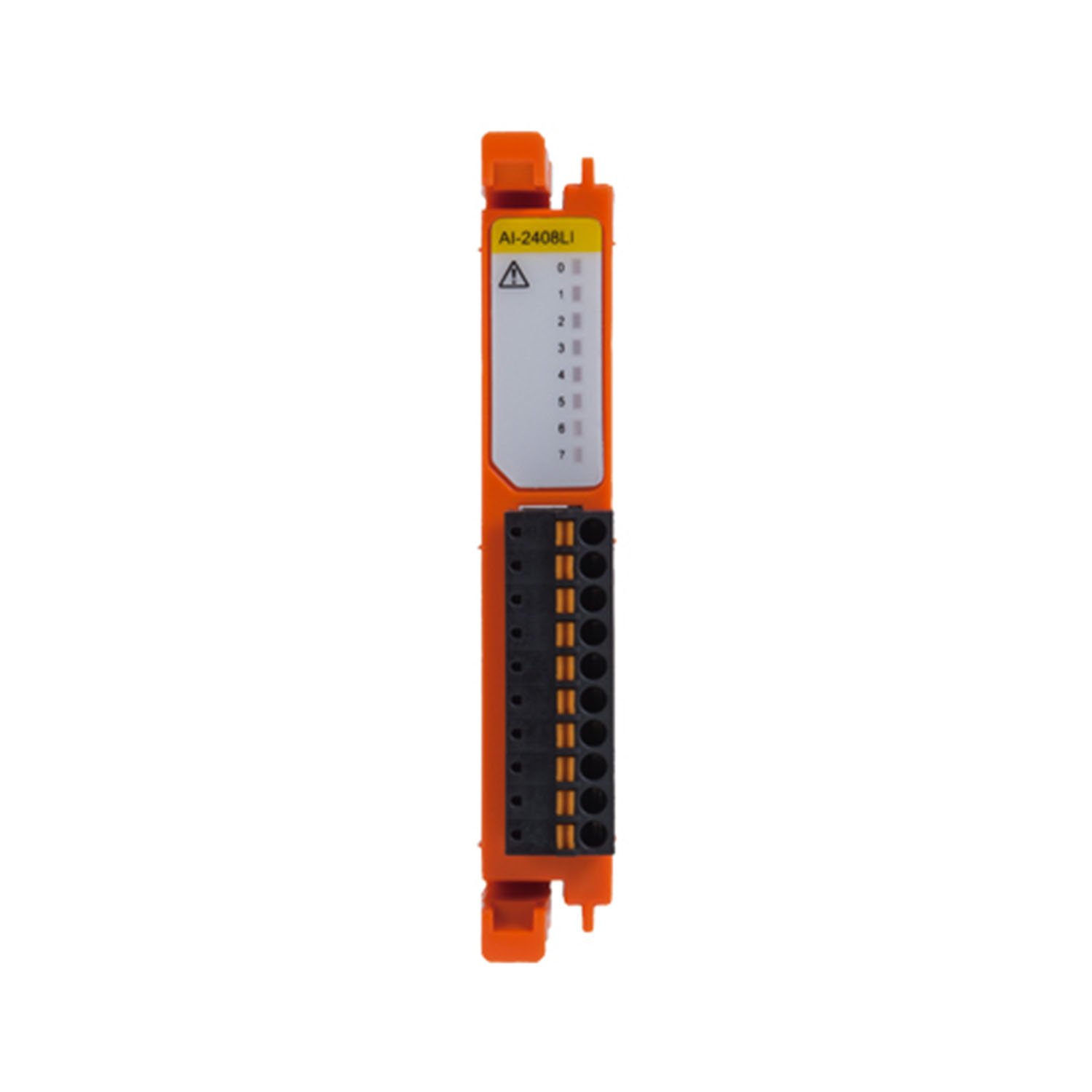

Expansion Analog I/O module for the CPU unit of the CONPROSYS nano series. One module can be used as single-ended voltage input with 8 channels, differential voltage input with 4 channels, or differential current input with 4 channels. The functions can be switched.
Expansion I/O module with RS-422A/485 COM port for to the CPU unit of the CONPROSYS nano series.

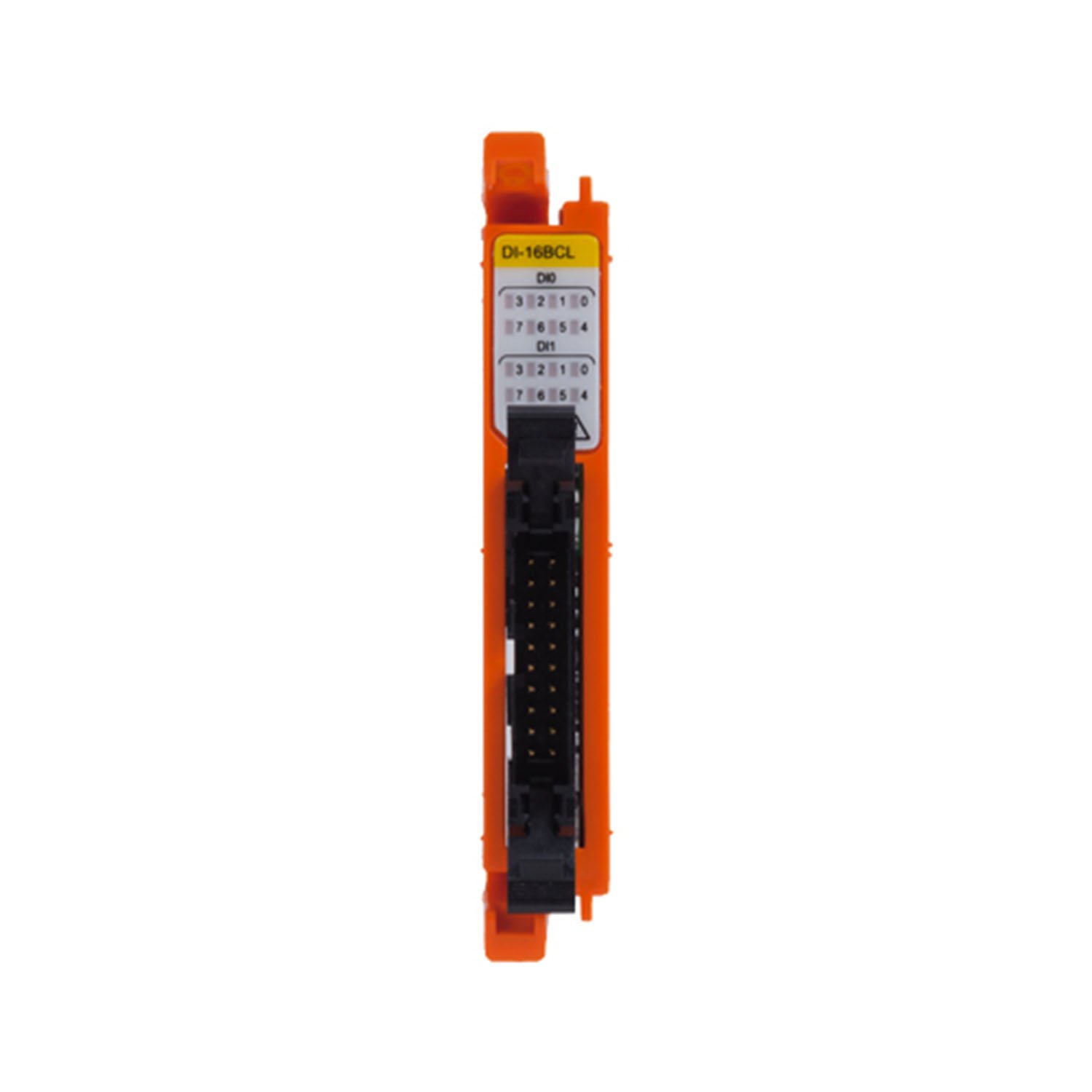

Expansion I/O module equipped with 16 inputs and 1 common that supports current sink/source output.
